Custom Length 7x19 Stainless Steel Wire Rope With Swage Sleeves And Ferrules

Name: Custom Length 7x19 Stainless Steel Wire Rope With Swage Sleeves And Ferrules
Brand: Taizhou Suyang Stainless Steel Wire Rope Co., Ltd.
SKU: 7*19
Price: 5.99 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Suyang

Certification: QUALITY MANAGEMENT SYSTEM CERTIFICATE

Model Number: 7*19

Document: 16949 certificate.PDF

Payment & Shipping Terms

Minimum Order Quantity: 200 Meters

Price: Negotiation

Packaging Details: Pallet、Wooden Cases

Delivery Time: 20-40 days

Payment Terms: T/T

Supply Ability: 10 ton/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                7x19 invisible grill wire rope, ferrules invisible grill wire rope, ferrules 7x19 stainless steel wire rope


Material:	304 316	HS Code:	7312100000
Length:	As Required	Tensile Strength:	According To Customer Requirements

Material:	304 316
HS Code:	7312100000
Length:	As Required
Tensile Strength:	According To Customer Requirements

Custom Length 7x19 Stainless Steel Wire Rope With Swage Sleeves And Ferrules

Custom-Length Stainless Steel Wire Rope with Swage Sleeves and Ferrules

Descriptions

The stainless steel wire rope offers exceptional tensile strength and durability, making it suitable for heavy-duty applications. It can withstand high loads and stress, ensuring reliability in demanding situations like lifting, towing, and suspension.
Equipped with eyelets and hooks at both ends, this wire rope ensures quick and secure attachment to various fixtures, providing convenience and versatility in use.
This wire rope offers high temperature resistance, maintaining its structural integrity and performance even under extreme heat conditions, up to specific temperature range if available.
This wire rope is suitable for a wide range of applications, including safety nets for construction sites, cargo lashing for transportation, and fall protection systems for elevated work areas.

Technical Specification

Structure	Nominal Diameter / MM	Minimum Breaking Force / KN		Reference Weight (KG/1000M)
Structure	Nominal Diameter / MM	AISI 304 06Cr19Ni10	AISI 316 06Cr17Ni12Mo2	Reference Weight (KG/1000M)
$7 \times 7 (6 \times 7 + I W S)$	0.8	0.461	0.384	2.56
	1.0	0.637	0.599	4.00
	1.2	1.2	0.915	5.76
	1.5	1.67	1.47	9.00
	1.8	2.25	1.94	12.96
	2.0	2.94	2.55	16.0
	2.5	4.1	3.45	25.0
	3.0	6.37	5.39	35.1
	3.18	7.15	6.14	39.4
	3.5	7.64	6.81	47.8
	4.0	9.51	8.9	62.4
	4.76	12.1	11.3	88.4
	5.0	14.7	13.9	97.5
	6.0	18.6	18.6	140
	8.0	40.6	35.6	250
$7 \times 19 (6 \times 19 + I W S)$	1.5	1.63	1.37	9
	2.0	2.94	2.55	16
	2.5	4.1	3.52	25
	3.18	7.85	6.08	39
	4.0	10.7	9.51	62
	4.76	16.5	13.69	88
	5.0	17.4	14.9	98
	6.0	23.5	20.8	140
	6.35	28.5	23.7	157
	8.0	40.1	36.1	250
	9.53	53.4	47.9	354
	10	63	55	390
	12	85.6	75	562
	14	123	108	764
	16	161	142	998
	18	192	169	1264
	20	237	209	1560

Details Photos

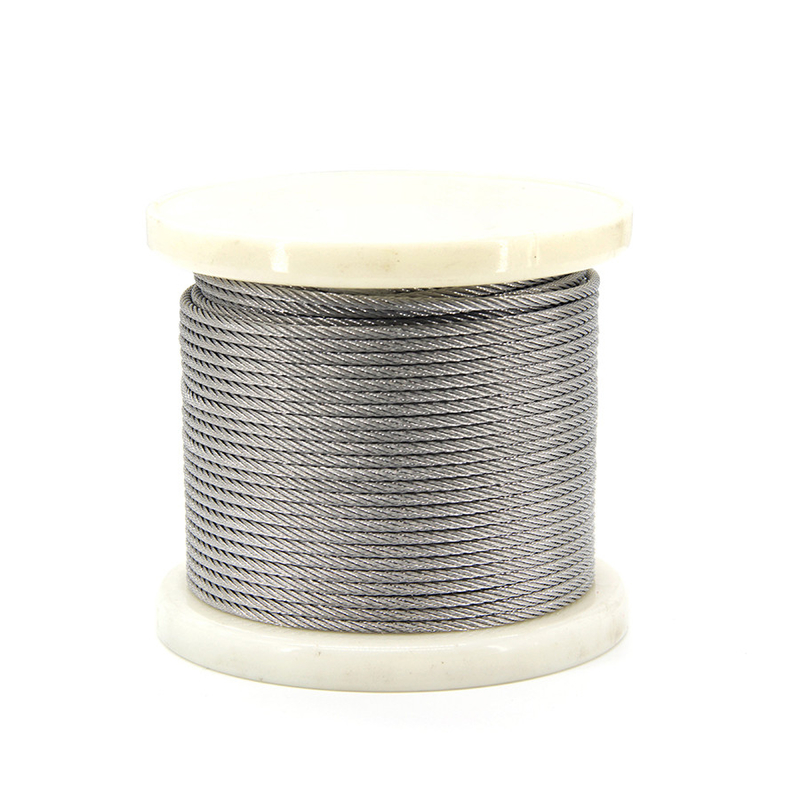

Custom Length 7x19 Stainless Steel Wire Rope With Swage Sleeves And Ferrules 0
