Highlight:
                                                                                                                                                                                towing 316 ss wire rope, towing 7x7 stainless steel wire rope, 316 7x7 stainless steel wire rope


Material:	304 316	HS Code:	7312100000
Length:	As Required	Tensile Strength:	According To Customer Requirements

Material:	304 316
HS Code:	7312100000
Length:	As Required
Tensile Strength:	According To Customer Requirements

Rigging Hoisting And Towing 7x7 Stainless Steel Wire Rope / 316 Ss Wire Rope

7*7 Stainless Steel Wire Rope for Rigging Hoisting and Towing Applications

Descriptions

The wire rope is engineered to meet strict safety standards, providing a secure and stable option for applications like fall protection, guardrails, and safety nets, ensuring user safety in high-risk environments.
Designed to withstand heavy loads, this wire rope provides superior tensile strength, ensuring reliable performance in demanding tasks such as lifting, rigging, and securing structures.
The wire rope features a 7x7 construction, meaning it consists of 7 strands, each made up of 7 individual wires. This design provides a balance of flexibility and strength, making it suitable for various applications.

Technical Specification

Structure	Nominal Diameter / MM	Minimum Breaking Force / KN		Reference Weight (KG/1000M)
Structure	Nominal Diameter / MM	AISI 304 06Cr19Ni10	AISI 316 06Cr17Ni12Mo2	Reference Weight (KG/1000M)
$7 \times 7 (6 \times 7 + I W S)$	0.8	0.461	0.384	2.56
	1.0	0.637	0.599	4.00
	1.2	1.2	0.915	5.76
	1.5	1.67	1.47	9.00
	1.8	2.25	1.94	12.96
	2.0	2.94	2.55	16.0
	2.5	4.1	3.45	25.0
	3.0	6.37	5.39	35.1
	3.18	7.15	6.14	39.4
	3.5	7.64	6.81	47.8
	4.0	9.51	8.9	62.4
	4.76	12.1	11.3	88.4
	5.0	14.7	13.9	97.5
	6.0	18.6	18.6	140
	8.0	40.6	35.6	250
$7 \times 19 (6 \times 19 + I W S)$	1.5	1.63	1.37	9
	2.0	2.94	2.55	16
	2.5	4.1	3.52	25
	3.18	7.85	6.08	39
	4.0	10.7	9.51	62
	4.76	16.5	13.69	88
	5.0	17.4	14.9	98
	6.0	23.5	20.8	140
	6.35	28.5	23.7	157
	8.0	40.1	36.1	250
	9.53	53.4	47.9	354
	10	63	55	390
	12	85.6	75	562
	14	123	108	764
	16	161	142	998
	18	192	169	1264
	20	237	209	1560

Details Photos

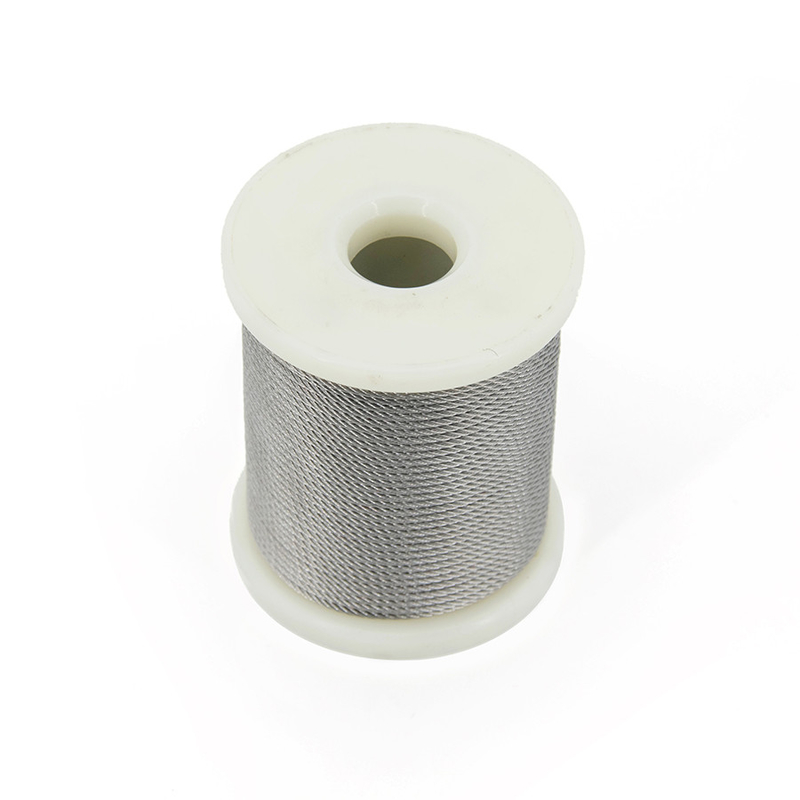

Rigging Hoisting And Towing 7x7 Stainless Steel Wire Rope / 316 Ss Wire Rope 0
