AISI Ss Wire Rope 6×19+IWS With High Temperature And Chemical Resistance

Name: AISI Ss Wire Rope 6×19+IWS With High Temperature And Chemical Resistance
Brand: Taizhou Suyang Stainless Steel Wire Rope Co., Ltd.
SKU: 7*19
Price: 5.99 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Suyang

Certification: QUALITY MANAGEMENT SYSTEM CERTIFICATE

Model Number: 7*19

Document: 16949 certificate.PDF

Payment & Shipping Terms

Minimum Order Quantity: 1000 Meters

Price: Negotiation

Packaging Details: Pallet、Wooden Cases

Delivery Time: 20-35 days

Payment Terms: T/T

Supply Ability: 10 ton/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                ss wire rope 6×19+iws, aisi ss wire rope, aisi ss 304 wire rope


Material:	304 316	HS Code:	7312100000
Length:	As Required	Tensile Strength:	According To Customer Requirements

Material:	304 316
HS Code:	7312100000
Length:	As Required
Tensile Strength:	According To Customer Requirements

AISI Ss Wire Rope 6×19+IWS With High Temperature And Chemical Resistance

Stainless Steel Wire Rope with High Temperature and Chemical Resistance

Descriptions

The stainless steel wire rope is constructed from high-grade stainless steel, ensuring exceptional durability and resistance to corrosion, making it ideal for harsh environments.
Available in various diameters and constructions, this wire rope can be customized to meet specific load-bearing requirements and application needs, ensuring versatility across different industries.
The combination of high tensile strength and flexibility makes it easy to handle and install, while still providing reliable performance under heavy loads and stressful conditions.

Technical Specification

Structure	Nominal Diameter / MM	Minimum Breaking Force / KN		Reference Weight (KG/1000M)
Structure	Nominal Diameter / MM	AISI 304 06Cr19Ni10	AISI 316 06Cr17Ni12Mo2	Reference Weight (KG/1000M)
$7 \times 7 (6 \times 7 + I W S)$	0.8	0.461	0.384	2.56
	1.0	0.637	0.599	4.00
	1.2	1.2	0.915	5.76
	1.5	1.67	1.47	9.00
	1.8	2.25	1.94	12.96
	2.0	2.94	2.55	16.0
	2.5	4.1	3.45	25.0
	3.0	6.37	5.39	35.1
	3.18	7.15	6.14	39.4
	3.5	7.64	6.81	47.8
	4.0	9.51	8.9	62.4
	4.76	12.1	11.3	88.4
	5.0	14.7	13.9	97.5
	6.0	18.6	18.6	140
	8.0	40.6	35.6	250
$7 \times 19 (6 \times 19 + I W S)$	1.5	1.63	1.37	9
	2.0	2.94	2.55	16
	2.5	4.1	3.52	25
	3.18	7.85	6.08	39
	4.0	10.7	9.51	62
	4.76	16.5	13.69	88
	5.0	17.4	14.9	98
	6.0	23.5	20.8	140
	6.35	28.5	23.7	157
	8.0	40.1	36.1	250
	9.53	53.4	47.9	354
	10	63	55	390
	12	85.6	75	562
	14	123	108	764
	16	161	142	998
	18	192	169	1264
	20	237	209	1560

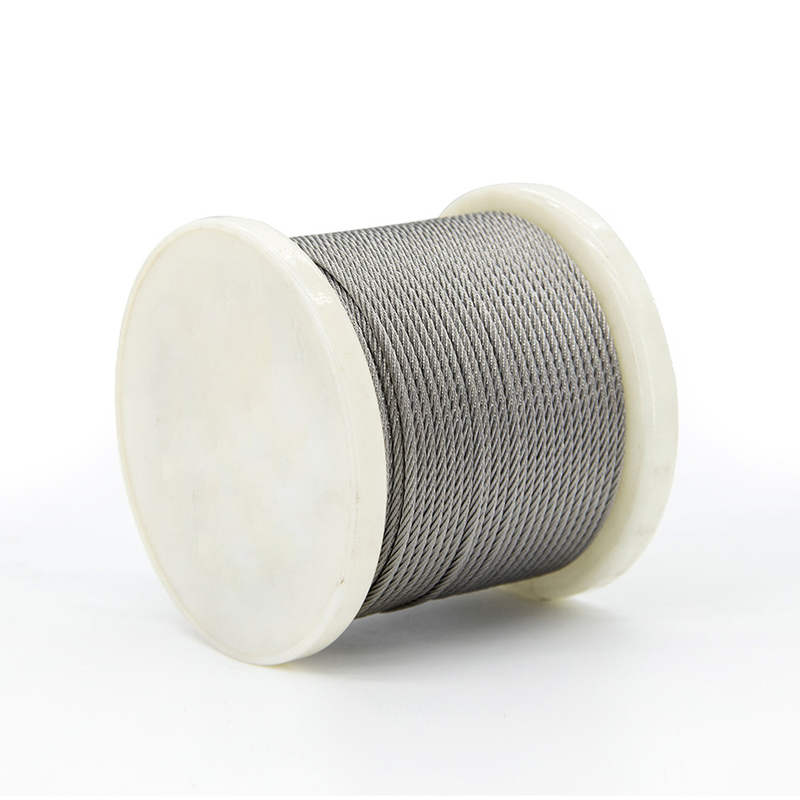

Details Photos

AISI Ss Wire Rope 6×19+IWS With High Temperature And Chemical Resistance 0
