AISI 304 Stainless Steel Wire Rope 1*19 For General Purpose Applications

Name: AISI 304 Stainless Steel Wire Rope 1*19 For General Purpose Applications
Brand: Taizhou Suyang Stainless Steel Wire Rope Co., Ltd.
SKU: 1*19
Price: 5.99 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu, China

Brand Name: Suyang

Certification: QUALITY MANAGEMENT SYSTEM CERTIFICATE

Model Number: 1*19

Document: 16949 certificate.PDF

Payment & Shipping Terms

Minimum Order Quantity: 1000 Meters

Price: Negotiation

Packaging Details: Pallet、Wooden Cases

Delivery Time: 25-40 days

Payment Terms: T/T

Supply Ability: 10 ton/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                304 stainless steel wire rope, stainless steel wire rope 1*19, 304 stainless wire rope


Material:	304 316	HS Code:	7312100000
Length:	As Required	Tensile Strength:	According To Customer Requirements

Material:	304 316
HS Code:	7312100000
Length:	As Required
Tensile Strength:	According To Customer Requirements

AISI 304 Stainless Steel Wire Rope 1*19 For General Purpose Applications

AISI 304 Stainless Steel Wire Rope for General Purpose Applications

Descriptions

The multi-purpose stainless steel wire rope is made from high-quality stainless steel, offering excellent resistance to rust, corrosion, and harsh environmental conditions, making it ideal for long-term use in construction and safety applications.
Designed to withstand heavy loads, this wire rope provides superior tensile strength, ensuring reliable performance in demanding tasks such as lifting, rigging, and securing structures.
These stainless steel wire ropes are widely used in construction, mining, and transportation industries. The 19×7 configuration, with its balanced strength and flexibility, is particularly suited for winches, hoists, and cable railings, while the 1×19 and 1×37 ropes are preferred for static applications like guy wires and balustrades.

Technical Specification

Structure	Nominal Diameter / MM	Minimum Breaking Force / KN	Reference Weight (KG/1000M)
		AISI 304 06Cr19Ni10
		AISI 304 06Cr19Ni10
$1 \times 19$	8	40	320
	9.5	56.4	451
	10	62.5	500
	11	75.7	605
	12	90.1	720
	14	123	980
	16	160	1280
	18	203	1620
$1 \times 37$	12	85	720
	14	116	980
	16	151	1280
	18	191	1620
	19.5	224	1901
	21	260	2205
	22.5	299	2531
	24	340	2880
$19 \times 7$	12	74.2	562
	14	101	764
	16	132	998
	18	167	1264
	20	206	1560
	22	249	1888
	24	297	2246
$35 W \times 7$	16	128	1075
	18	162	1361
	20	200	1680
	22	242	2033
	24	288	2419

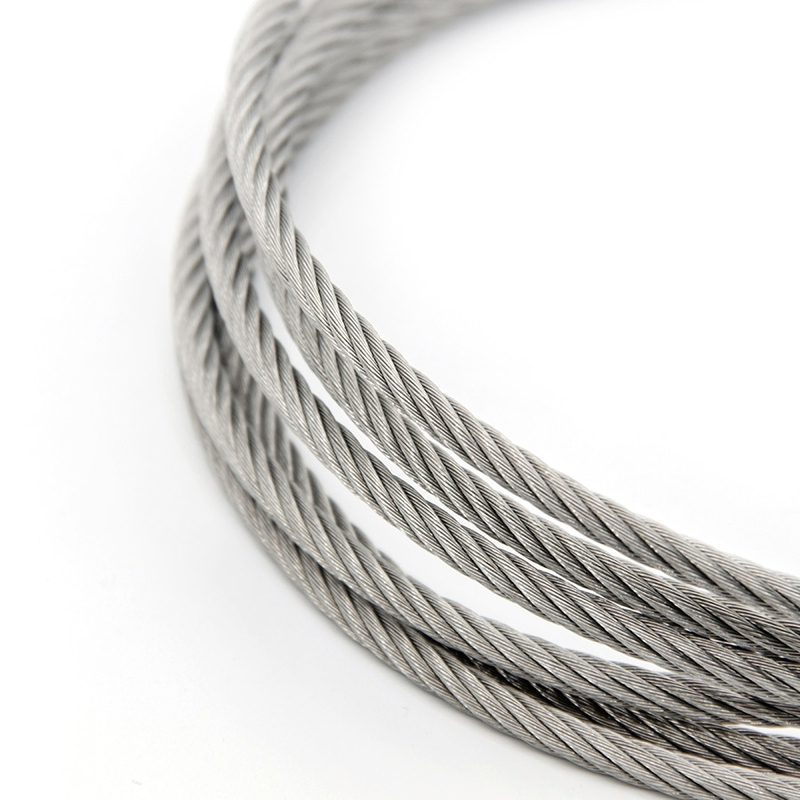

Details Photos

AISI 304 Stainless Steel Wire Rope 1*19 For General Purpose Applications 0

FAQ

Q1: Wonder if you accept small orders?

A1: Do not worry. Feel free to contact us .in order to get more orders and give our clients more convener, we accept small order.

Q2: Can you send products to my country?

A2: Sure, we can. If you do not have your own ship forwarder, we can help you.

Q3: Can you do OEM for me?

A3: We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and make samples for you ASAP.

Q4: What's your payment terms ?

A4: By T/T,LC AT SIGHT, 30% deposit in advance, balance 70% before shipment.

Q5: How can I place the order?

A5: First sign the PI, pay deposit,then we will arrange the production.After finished production need you pay balance. Finally we will ship the Goods.

Q6: When can I get the quotation ?

A6: We usually quote you within 24 hours after we get your inquiry. If you are very urgent to get the quotation.Please call us or tell us in your mail, so that we could regard your inquiry priority.
