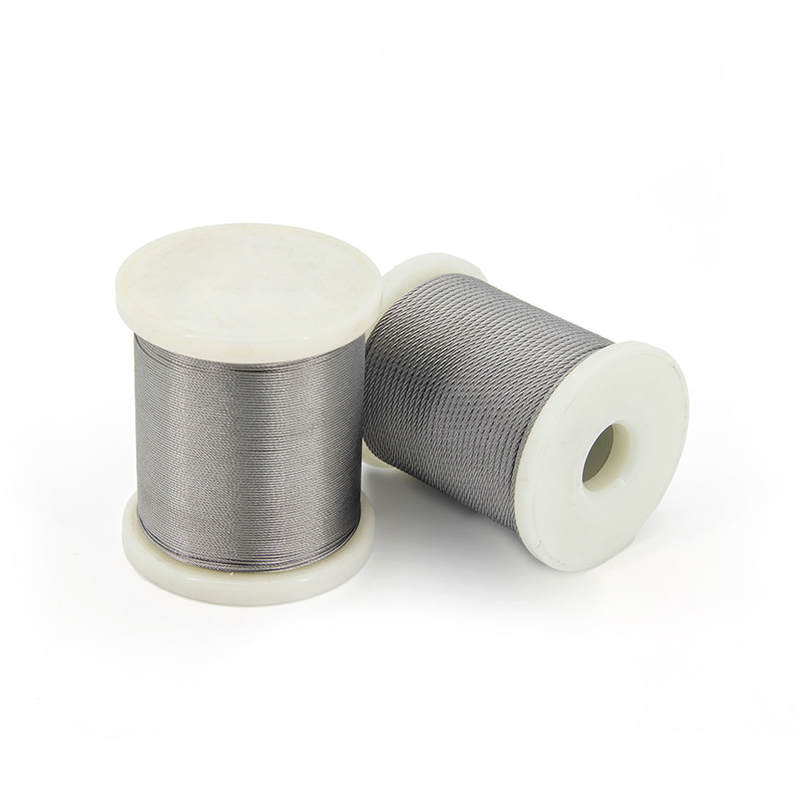

6mm - 10mm Ss 316 7x7 Wire Rope Invisible Grille Material
7*7 6mm - 10mm Ss 316 Wire Rope Stainless Steel Invisible Grille Material
Descriptions
1. Material Composition
Grade: 304/316 stainless steel (specify 316L for marine/chemical environments).
Corrosion Resistance: Meets ASTM A493/A580 standards, resistant to rust, acids, and UV exposure.
2. Technical Specifications
Diameter Range: 2mm – 24mm (custom diameters available).
Minimum Breaking Load (MBL): Complies with ISO 2232/DIN 3054 standards (provide exact values per gauge).
Safety Factor: Standard 4:1 (adjustable to 6:1 for critical infrastructure).
3. Key Applications
Architectural: Guy wires, suspension bridges, and structural bracing.
Industrial: Tower crane stays, elevator guide ropes, and safety barriers.
Marine: Fixed rigging, antenna cables, and offshore platform supports.
4. Surface Treatment
Smooth Finish: Bright polished or electropolished surface to reduce friction and snagging.
Optional Coating: PVC or nylon sheathing for added abrasion resistance and color coding.
Technical Specification
| Structure |
Nominal Diameter / MM |
Minimum Breaking Force / KN |
Reference Weight (KG/1000M) |
|
|
AISI 304 06Cr19Ni10 |
AISI 316 06Cr17Ni12Mo2 |
|
| 7×7(6×7+IWS)7×7(6×7+IWS) |
0.8 |
0.461 |
0.384 |
2.56 |
| 1.0 |
0.637 |
0.599 |
4.00 |
| 1.2 |
1.2 |
0.915 |
5.76 |
| 1.5 |
1.67 |
1.47 |
9.00 |
| 1.8 |
2.25 |
1.94 |
12.96 |
| 2.0 |
2.94 |
2.55 |
16.0 |
| 2.5 |
4.1 |
3.45 |
25.0 |
| 3.0 |
6.37 |
5.39 |
35.1 |
| 3.18 |
7.15 |
6.14 |
39.4 |
| 3.5 |
7.64 |
6.81 |
47.8 |
| 4.0 |
9.51 |
8.9 |
62.4 |
| 4.76 |
12.1 |
11.3 |
88.4 |
| 5.0 |
14.7 |
13.9 |
97.5 |
| 6.0 |
18.6 |
18.6 |
140 |
| 8.0 |
40.6 |
35.6 |
250 |
| 7×19(6×19+IWS)7×19(6×19+IWS) |
1.5 |
1.63 |
1.37 |
9 |
| 2.0 |
2.94 |
2.55 |
16 |
| 2.5 |
4.1 |
3.52 |
25 |
| 3.18 |
7.85 |
6.08 |
39 |
| 4.0 |
10.7 |
9.51 |
62 |
| 4.76 |
16.5 |
13.69 |
88 |
| 5.0 |
17.4 |
14.9 |
98 |
| 6.0 |
23.5 |
20.8 |
140 |
| 6.35 |
28.5 |
23.7 |
157 |
| 8.0 |
40.1 |
36.1 |
250 |
| 9.53 |
53.4 |
47.9 |
354 |
| 10 |
63 |
55 |
390 |
| 12 |
85.6 |
75 |
562 |
| 14 |
123 |
108 |
764 |
| 16 |
161 |
142 |
998 |
| 18 |
192 |
169 |
1264 |
| 20 |
237 |
209 |
1560 |
Functions and Feature
1,The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the requirements.
2,A steel wire rope is a rope that is twisted into strands from multiple layers of steel wire, and then a certain number of strands are twisted into a spiral with the core as the center.
3,In material handling machinery, it is used for lifting, traction, tensioning and carrying.
4,The steel wire rope has high strength, light weight, stable work, not easy to be broken suddenly, and reliable work.
