0.3mm- 25mm Ss 304 Wire Rope Stainless Steel Invisible Grille Material
0.3mm- 25mm Ss 304 Wire Rope Stainless Steel Invisible Grille Material
Descriptions
1. Performance Advantages
High Flexibility: 37-wire strands enable tight bending radii (e.g., 6x rope diameter).
Fatigue Resistance: Optimized for dynamic loading and repetitive motion.
Weight Capacity: Breaking strength ranges from X kN to Y kN (adjust per diameter, e.g., 1/8" to 1").
2. Technical Specifications
Diameter Range: 1.5mm – 20mm (customizable).
Minimum Breaking Load (MBL): Complies with ISO 2408 or DIN 3055 standards (provide exact values per gauge).
Safety Factor: 5:1 standard (adjustable to 7:1 for critical applications).
3. Surface Finish & Lubrication
Bright Finish: Smooth surface reduces friction and wear.
Lubrication: Pre-lubricated with anti-corrosion grease (optional wax coating for extreme conditions).
4. Certifications & Testing
Certifications: CE, DNV-GL, or ABS marine certification (as applicable).
Testing: 100% non-destructive testing (NDT) for wire integrity; load-tested batches available.
Technical Specification
| Structure |
Diameter Before Coating (MM) |
Diameter After Coating (MM) |
Minimum Breaking Force (KN) |
Reference Weight (KG/1000M) |
| AISI 304 06Cr19Ni10 |
AISI 316 06Cr17Ni12Mo2 |
| 1×71×7 |
0.60 |
0.80 |
0.382 |
0.333 |
2.2 |
| 0.80 |
1.00 |
0.667 |
0.588 |
3.7 |
| 1.00 |
1.20 |
1 |
0.91 |
5.6 |
| 1.20 |
1.50 |
1.32 |
1.21 |
8.2 |
| 1.50 |
2.00 |
2.26 |
2.05 |
13.4 |
| 2.00 |
2.50 |
4.02 |
3.63 |
22.8 |
| 1×191×19 |
1.00 |
1.20 |
0.95 |
0.814 |
5.6 |
| 1.20 |
1.50 |
1.27 |
1.17 |
8.2 |
| 1.50 |
2.00 |
2.25 |
1.81 |
13.4 |
| 2.00 |
2.50 |
3.82 |
3.24 |
22.8 |
| 2.50 |
3.00 |
5.58 |
5.1 |
34.7 |
| 3.00 |
4.00 |
8.03 |
7.31 |
53.8 |
| 4.00 |
5.00 |
13.9 |
12.2 |
91.3 |
| 7×77×7 |
0.80 |
1.00 |
0.461 |
0.384 |
3.0 |
| 1.00 |
1.20 |
0.637 |
0.599 |
4.6 |
| 1.20 |
1.50 |
1.2 |
0.915 |
6.8 |
| 1.50 |
2.00 |
1.67 |
1.47 |
11.2 |
| 2.00 |
2.50 |
2.94 |
2.55 |
18.8 |
| 2.50 |
3.00 |
4.1 |
3.45 |
28.4 |
| 3.00 |
4.00 |
6.37 |
5.39 |
44.8 |
| 4.00 |
5.00 |
9.51 |
8.9 |
75.3 |
| 7×197×19 |
2.00 |
3.00 |
2.94 |
2.55 |
22.3 |
| 3.00 |
4.00 |
6.37 |
5.39 |
44.8 |
| 4.00 |
5.00 |
10.7 |
9.51 |
75.3 |
| 5.00 |
6.00 |
17.4 |
14.9 |
113.8 |
| 6.00 |
8.00 |
23.5 |
20.8 |
179.0 |
| 8.00 |
10.00 |
40.1 |
36.1 |
301.0 |
| 10.00 |
12.00 |
63 |
55 |
455.0 |
| 12.00 |
14.00 |
85.6 |
75 |
641.0 |
| 14.00 |
16.00 |
123 |
108 |
859.0 |
Functions and Feature
1,High tensile strength due to its 7- strand structure for heavy - load applications.
2,Exceptional corrosion resistance with stainless steel and plastic coating for harsh environments.
3,Good flexibility allowing smooth bending around equipment components.
4,Enhanced wear resistance as the plastic layer reduces friction on steel wires.

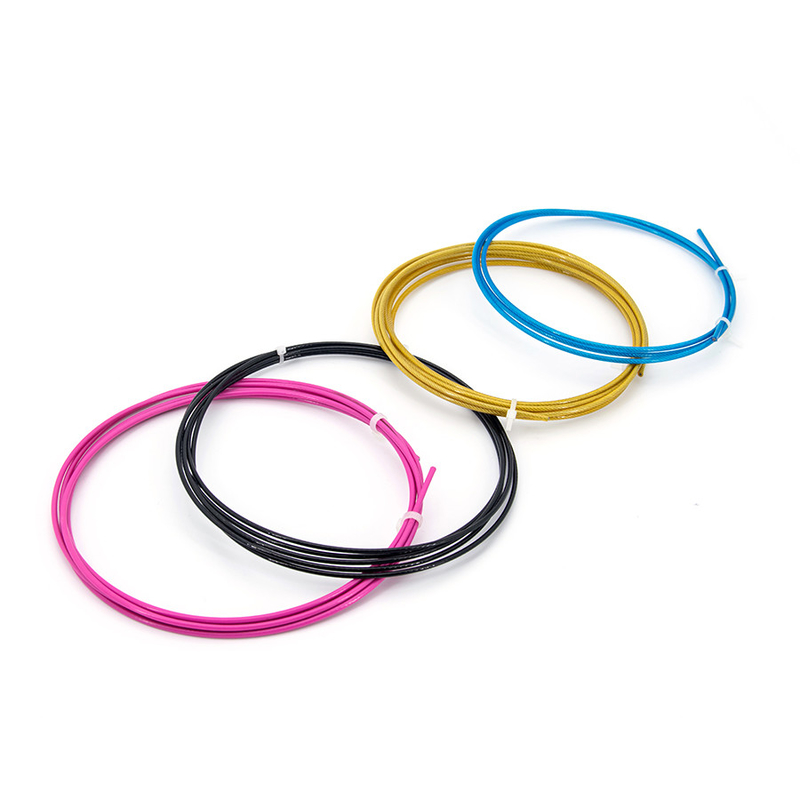

Details Photos
