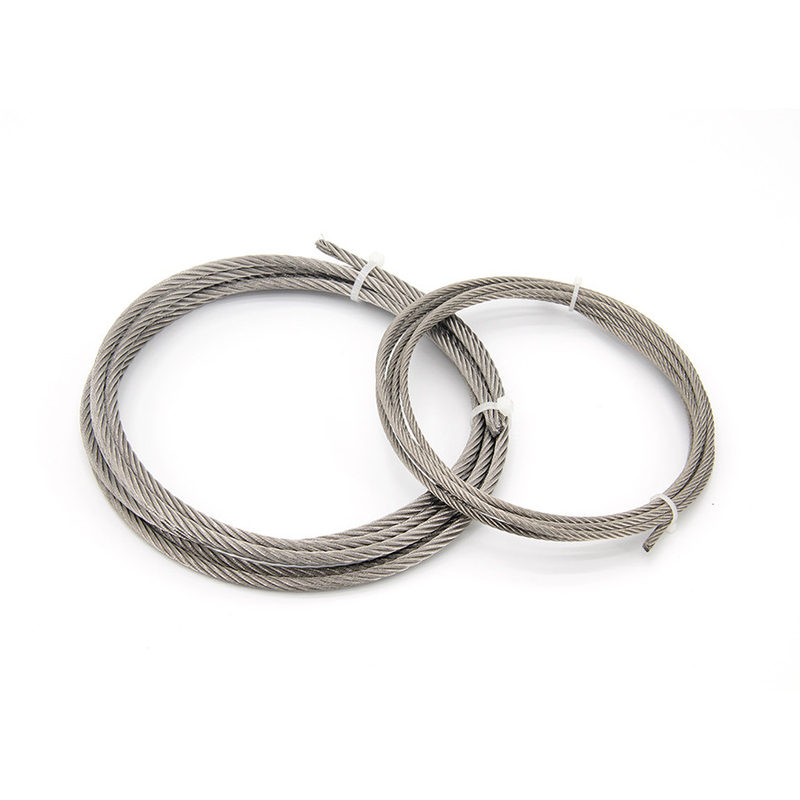

Stainless Steel Wire Rope Silver 7*19 4mm Smooth Polished Surface
Stainless Steel Wire Rope Silver 7*19 4mm Smooth Polished Surface
Descriptions
1,Capable of handling significant loads despite its small diameter.
2,The 7x19 construction allows for easy bending and movement, making it ideal for dynamic applications.
3,Suitable for use in harsh environments, including marine, chemical, and outdoor settings.
4,Resistant to wear, abrasion, and fatigue, ensuring a long service life.
5,Commonly used in cable machines and other gym equipment.
Technical Specification
| Structure |
Nominal Diameter / MM |
Minimum Breaking Force / KN |
Reference Weight (KG/1000M) |
| AISI 304 06Cr19Ni10 |
AISI 316 06Cr17Ni12Mo2 |
| 7×7(6×7+IWS)7×7(6×7+IWS) |
0.8 |
0.461 |
0.384 |
2.56 |
| 1.0 |
0.637 |
0.599 |
4.00 |
| 1.2 |
1.2 |
0.915 |
5.76 |
| 1.5 |
1.67 |
1.47 |
9.00 |
| 1.8 |
2.25 |
1.94 |
12.96 |
| 2.0 |
2.94 |
2.55 |
16.0 |
| 2.5 |
4.1 |
3.45 |
25.0 |
| 3.0 |
6.37 |
5.39 |
35.1 |
| 3.18 |
7.15 |
6.14 |
39.4 |
| 3.5 |
7.64 |
6.81 |
47.8 |
| 4.0 |
9.51 |
8.9 |
62.4 |
| 4.76 |
12.1 |
11.3 |
88.4 |
| 5.0 |
14.7 |
13.9 |
97.5 |
| 6.0 |
18.6 |
18.6 |
140 |
| 8.0 |
40.6 |
35.6 |
250 |
| 7×19(6×19+IWS)7×19(6×19+IWS) |
1.5 |
1.63 |
1.37 |
9 |
| 2.0 |
2.94 |
2.55 |
16 |
| 2.5 |
4.1 |
3.52 |
25 |
| 3.18 |
7.85 |
6.08 |
39 |
| 4.0 |
10.7 |
9.51 |
62 |
| 4.76 |
16.5 |
13.69 |
88 |
| 5.0 |
17.4 |
14.9 |
98 |
| 6.0 |
23.5 |
20.8 |
140 |
| 6.35 |
28.5 |
23.7 |
157 |
| 8.0 |
40.1 |
36.1 |
250 |
| 9.53 |
53.4 |
47.9 |
354 |
| 10 |
63 |
55 |
390 |
| 12 |
85.6 |
75 |
562 |
| 14 |
123 |
108 |
764 |
| 16 |
161 |
142 |
998 |
| 18 |
192 |
169 |
1264 |
| 20 |
237 |
209 |
1560 |
Functions and Feature
1,The steel wire rope is a helical wire bundle made of steel wires with mechanical properties and geometric dimensions that meet the requirements.
2,A steel wire rope is a rope that is twisted into strands from multiple layers of steel wire, and then a certain number of strands are twisted into a spiral with the core as the center.
3,In material handling machinery, it is used for lifting, traction, tensioning and carrying.
4,The steel wire rope has high strength, light weight, stable work, not easy to be broken suddenly, and reliable work.
